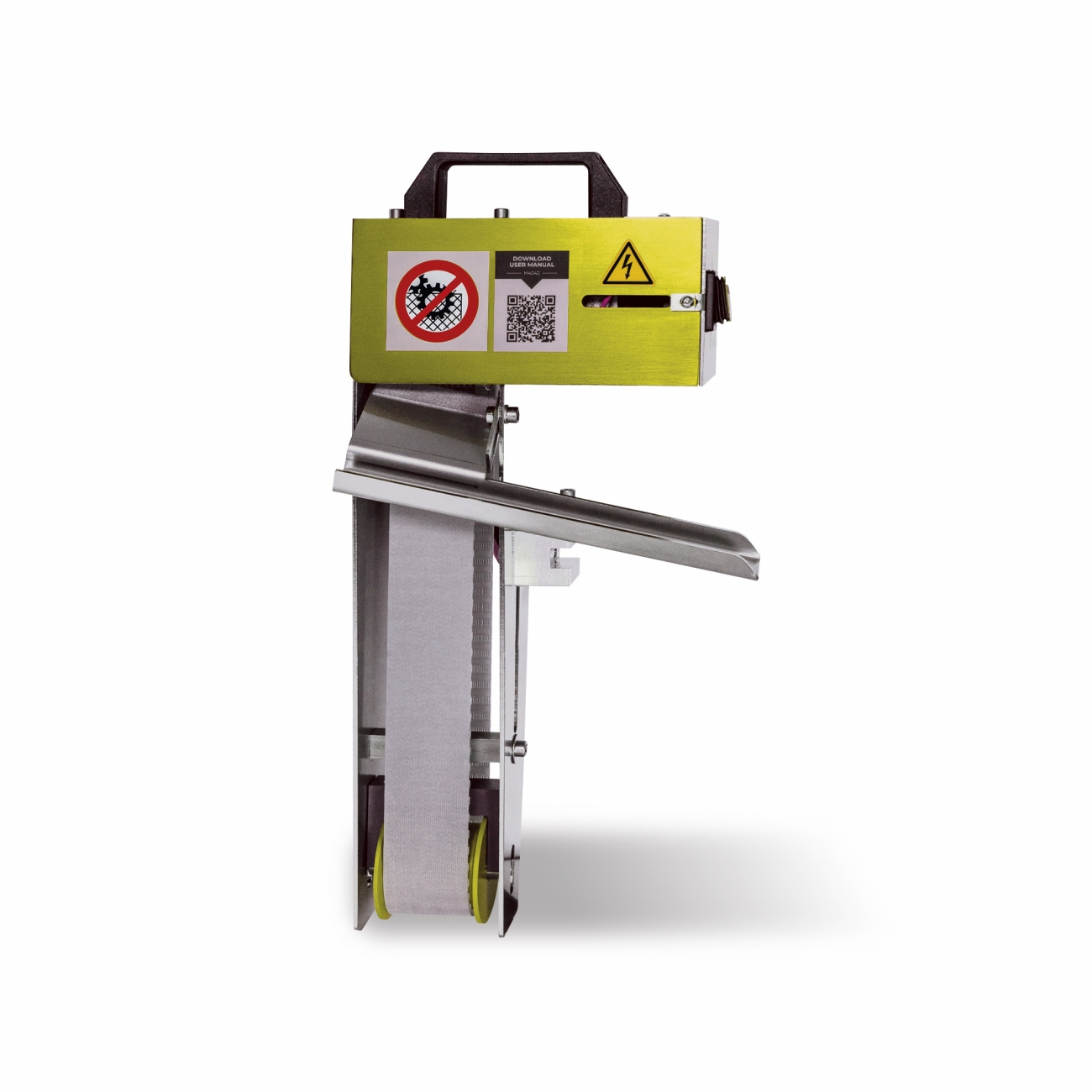

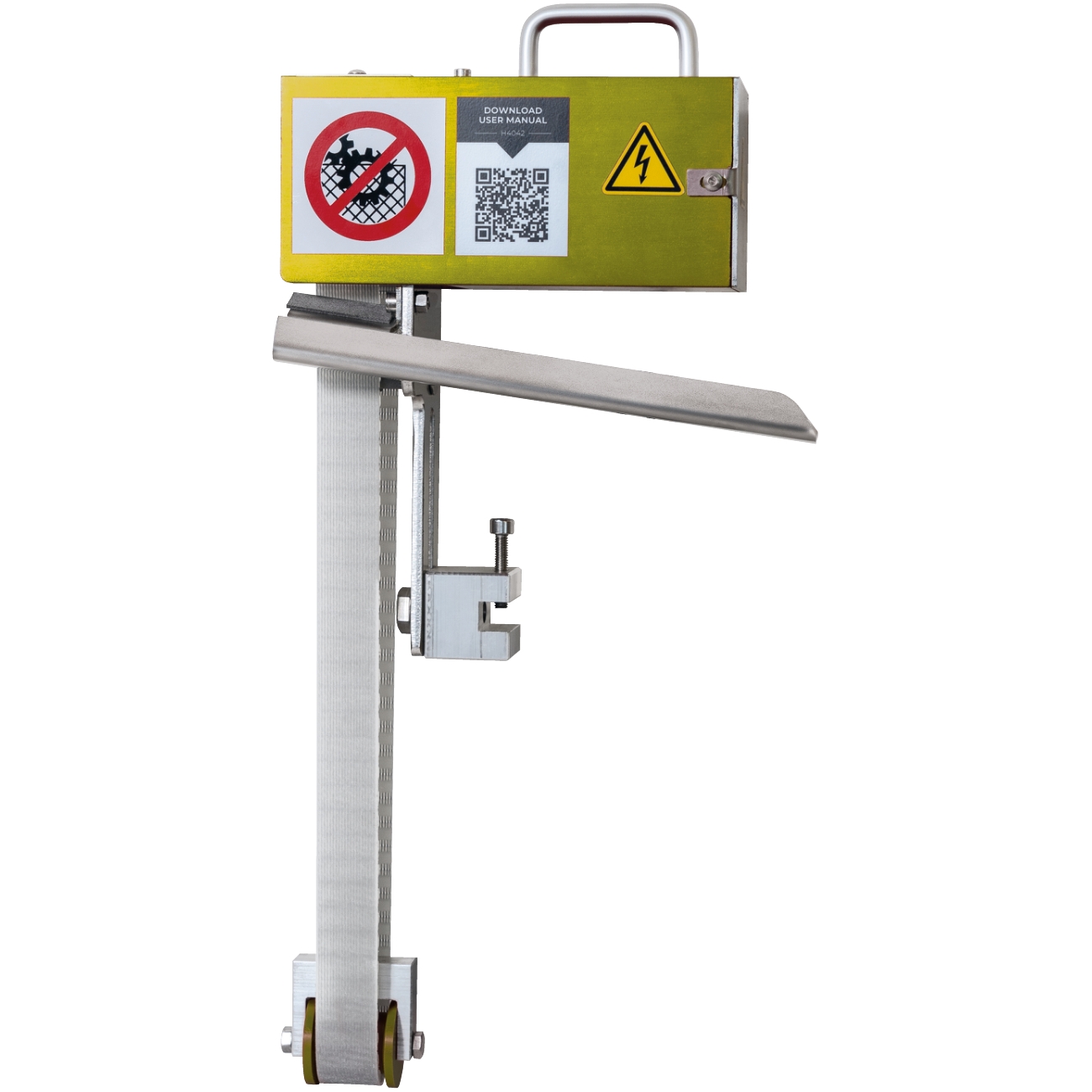

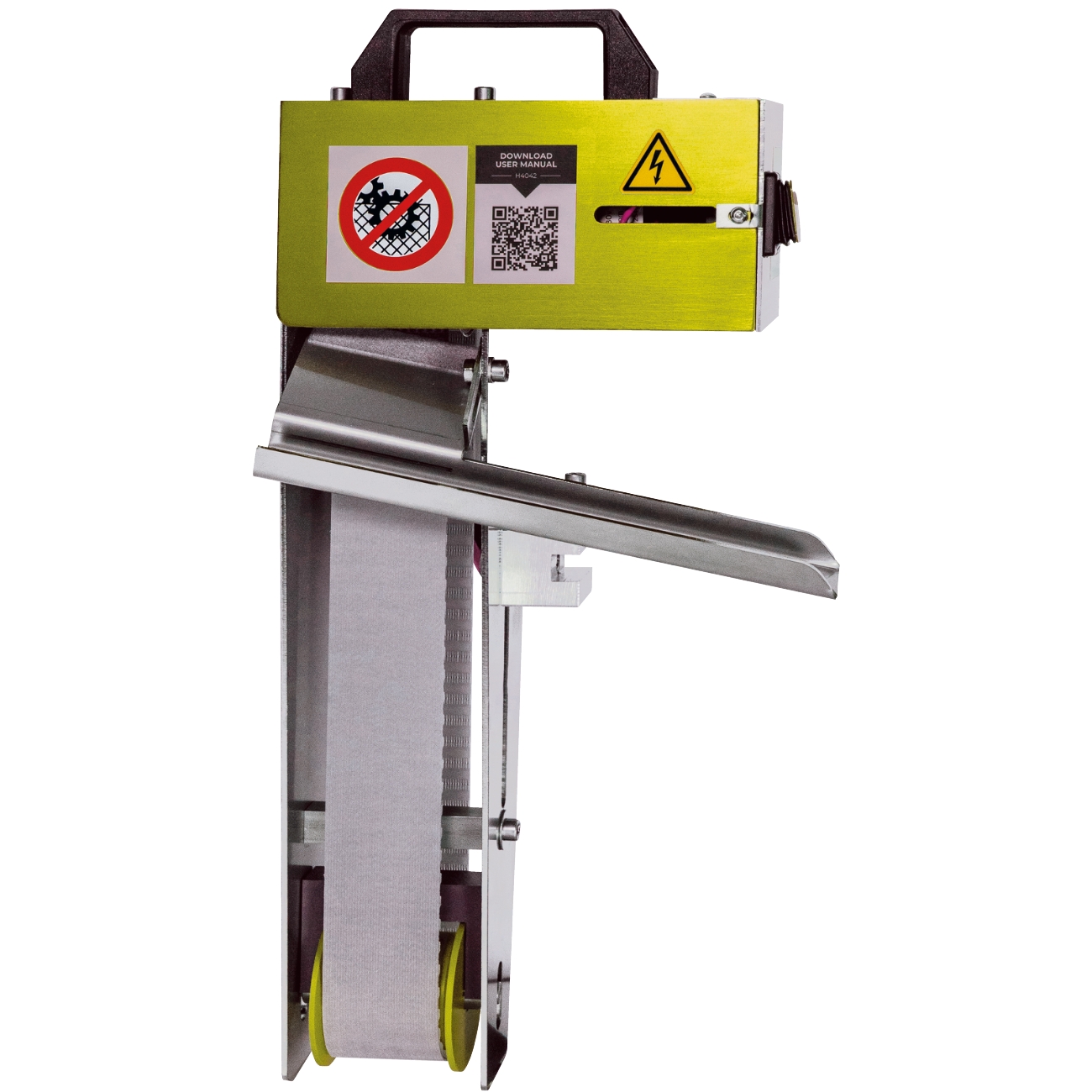

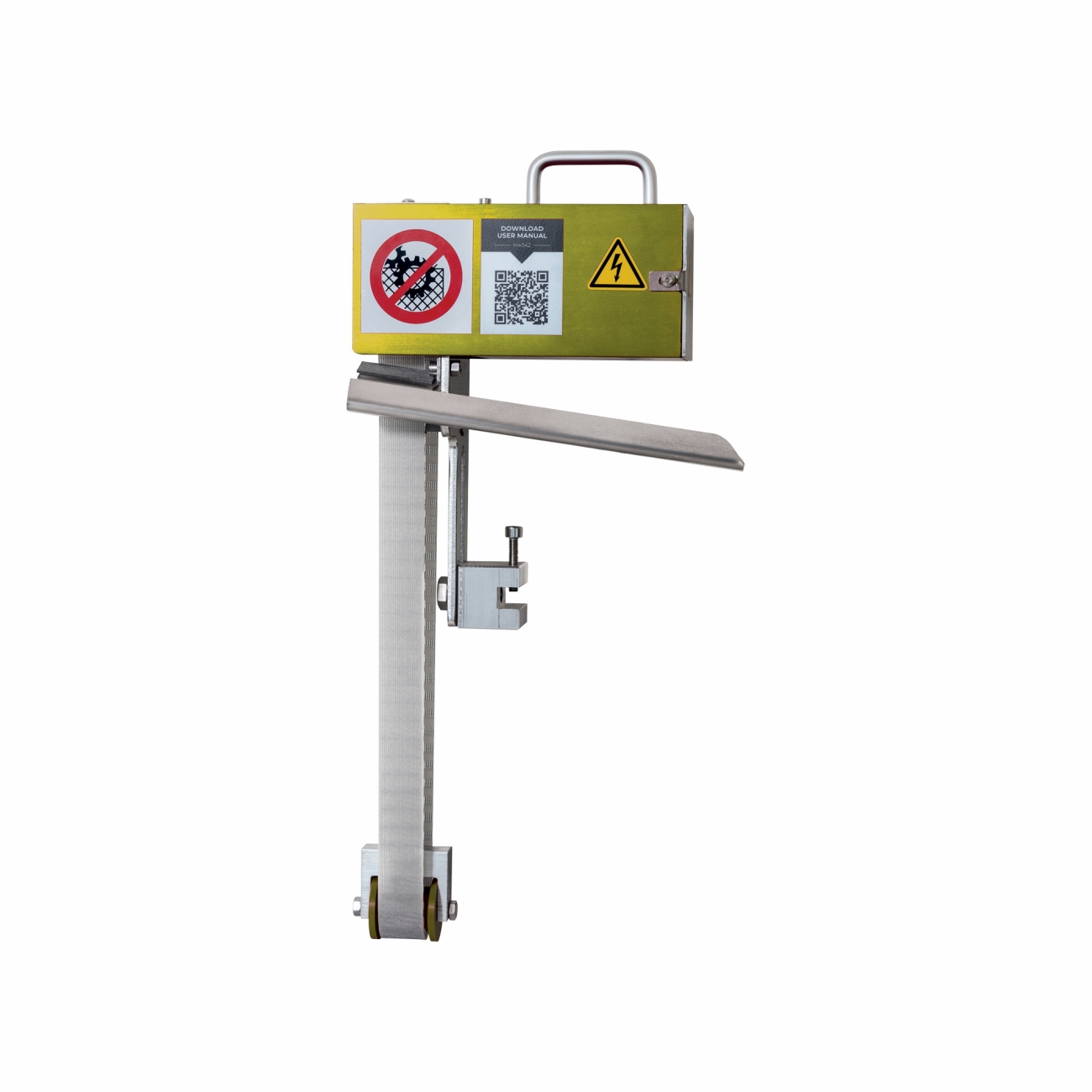

Belt oil separator Rasen LANDOIL

Cod. LN850

LANDOIL's Rasen belt oil separator reduces chemical-biological risks and foreign oil fumes, prolonging the life of the emulsion for greater safety.

Request information Download materials

Description

The RASEN N series of belt oil separators are designed for the removal of foreign oil in machine tools, washing fluid tanks, compressor condensation and in general where it is necessary to separate surface oil from the underlying fluid.
They are easily applicable even in tight spaces, and allow for an effective mechanical removal of polluting oils from the surface of metalworking fluid emulsions.
Features:
• STAINLESS Steel and Light Alloy Construction
• PVC/Polyurethane Belt
• Low tension planetary gear motor, according to ISO standards, protected against dust and accidental impact
• 7 speeds adjustable via a potentiometer
• Air fitting for emulsion oxygenation included
• Can be equipped with a level switch
• 230 V power supply

Advantages

Reduces biological risks
Reduces smoke generated by foreign oils
Extends the service life of the emulsion
No operator supervision required

Variant

Codice	Suction tube mm	Tape size mm	Dimensions mm	Weight kg	Level switch
LN85000250	300	25	210 x 100 x 438	5,5	Yes
LN85000500	300	50	244 x 148 x 507	7,5	Yes
