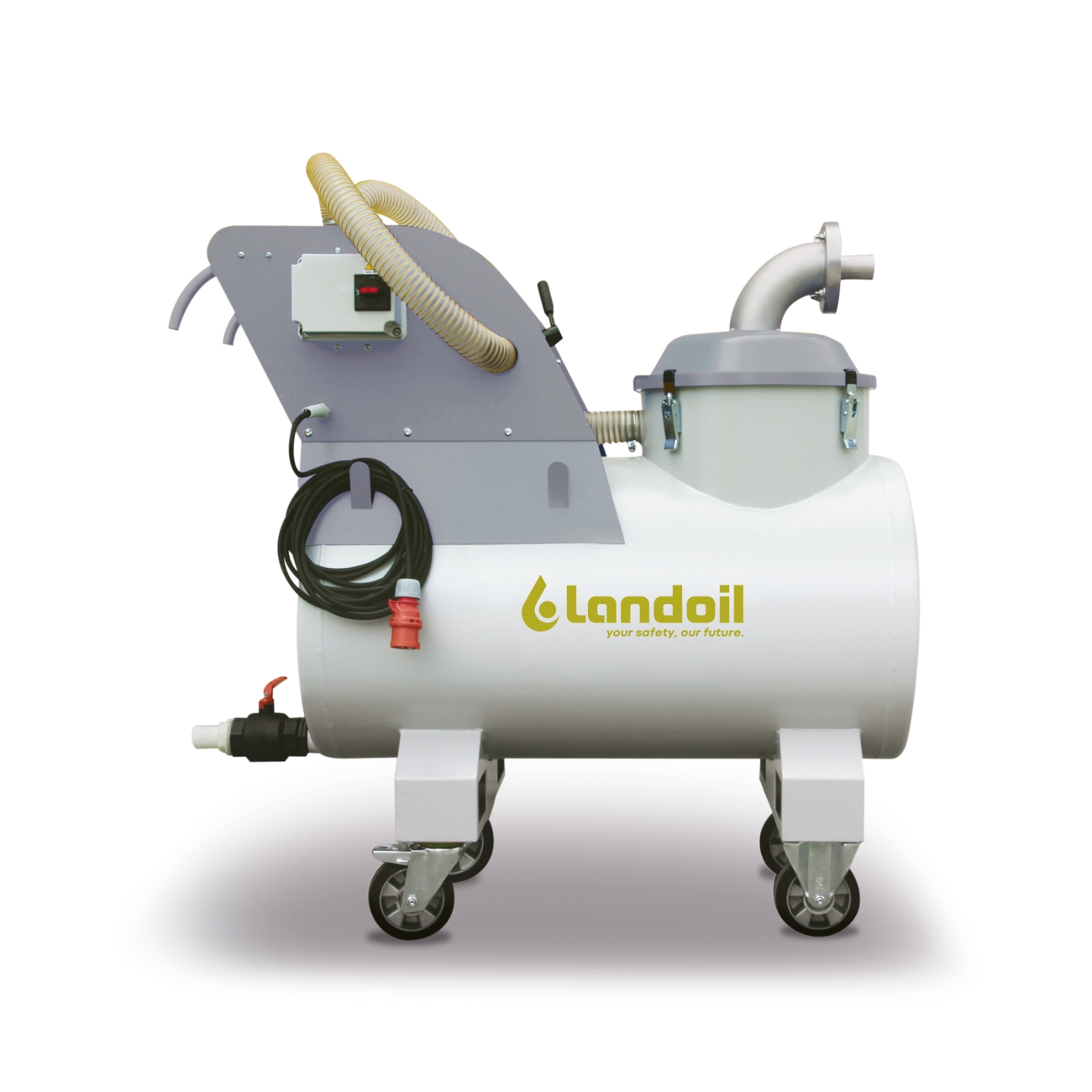

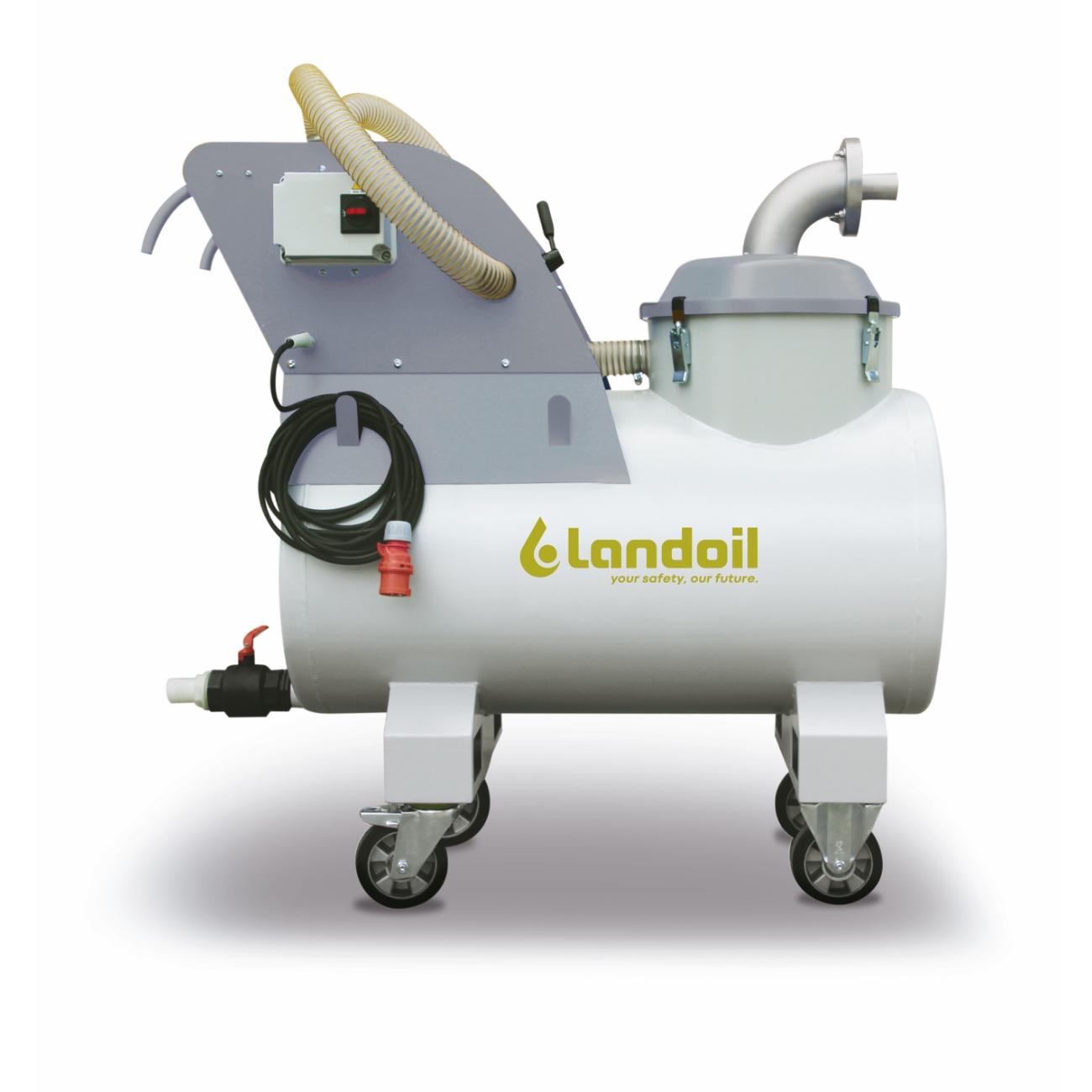

Industrial vacuum cleaners Twist Oil LANDOIL

Cod. N/A

LANDOIL Twist Oil industrial vacuum cleaners ensure faster tank emptying with three-phase motor and efficient separation of swarf from liquid.

Request information Download materials

Description

Three-phase industrial sump vacuum for continuous use, capable of separating mixed liquids and solids. The emptying of liquids takes place by reversing the flow of air generated by the turbine, eliminating any problem of possible blocking of the transfer pumps. Weight: 220 kg.

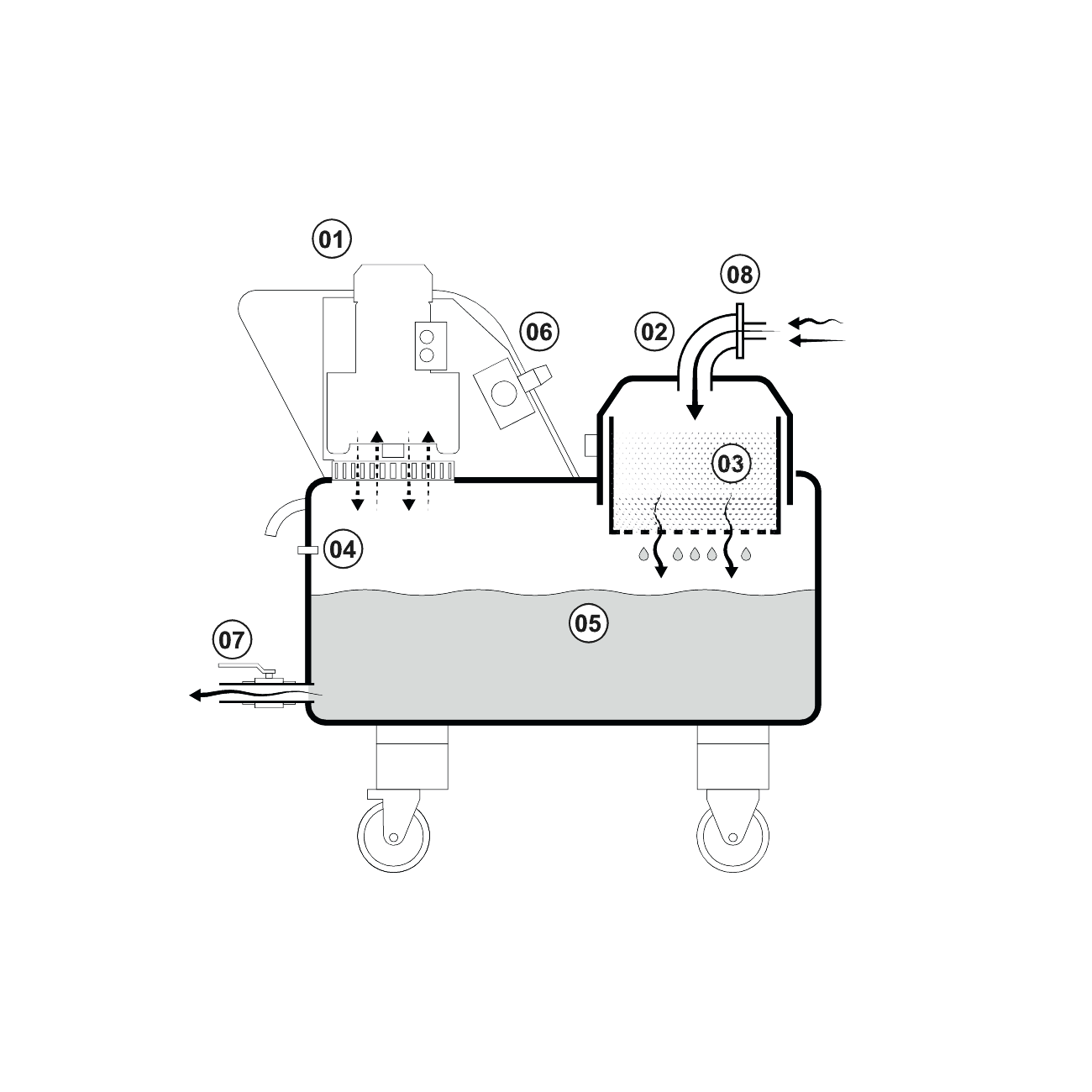

Components:
- Turbine with three-phase motor
- Liquid aspiration time L/sec. 280/40
- Liquid drain time L/sec. 280/50
- Microperforated galvanized steel basket
- Level probe with automatic locking system
- Aspiration nozzle Ø 50 mm
- 280 Litre capacity tank which also acts as a robust load-bearing structure
- Instant recovery of metalworking fluids with direct return delivery to the tank via a drain tube with ball valve
- Accessory holders

Advantages

Quicker emptying of the tank thanks to the three-phase motor
Chip-to-liquid separation
No operator supervision required thanks to automatic overflow shut-off
Wide range
Easy maintenance due to the absence of an external booster pump
Instant and easy use

Variant

Codice	Liquid capacity L	Solid capacities L	Power supply V - Hz	Power kw - HP	Max. depression mBar	Max. air flow rate L/min	Sound level dB(A)	Dimensions mm
LN89100280	280	40	400 - 50/60	2.5 - 3	330	5100	72	700 x 1450 x 1400 h
